Self-propelling 4L-0.9B wheat rice mini combine harvester
Advanced harvesting solution for large-scale agriculture
$45,000 / unit (FOB)
High output easy operate low oil consumption
Key Features
Model
Customized
Capacity
0.08-0.17 acre/h
ISO 9001 Certified
1 Year Warranty
Global Shipping
After-sales Support
Technical Specifications
General | Model | Unit | 4L-0.9B |
Stucture Type | / | Full-feeding, Self-propelling | |
Starting | / | Hand Cranking & Electric starting | |
Lighting | / | 12v/100w | |
Cooling | / | Air cooling | |
Weight | kgs | 450 | |
Dimensions | mm | 2720*1300*1210 | |
Engine | Model | / | 188F |
Diesel engine | / | Single cylinder horizontal evaporative water cooling, direct injection | |
Rated power | HP | 12.5 | |
Rated engine speed | r/min | 3600 | |
Fuel Consumption | kg/hm2 | ≤20 | |
Performance | Theoretical working speed | / | 2.56(second gear) |
Productivity | hm2/h | ≥0.04-0.1 | |
Crushing rate | / | ≤1.5% | |
Loss rate | wheat | ≤2% | |
rice | ≤3.5% | ||
Rated cutting width | mm | 1000 | |
Wheels/ | Min. ground clearance | mm | 180 |
Caterpillar | Caterpillar | mm | Length 800 X width 250 |
31 sections and 35 sections caterpillar are available for choice | |||
Tires | / | 5.00-12 (Optional) |
Self-propelling 4L-0.9B wheat rice mini combine harvester
Introduction of wheat rice mini combine harvester

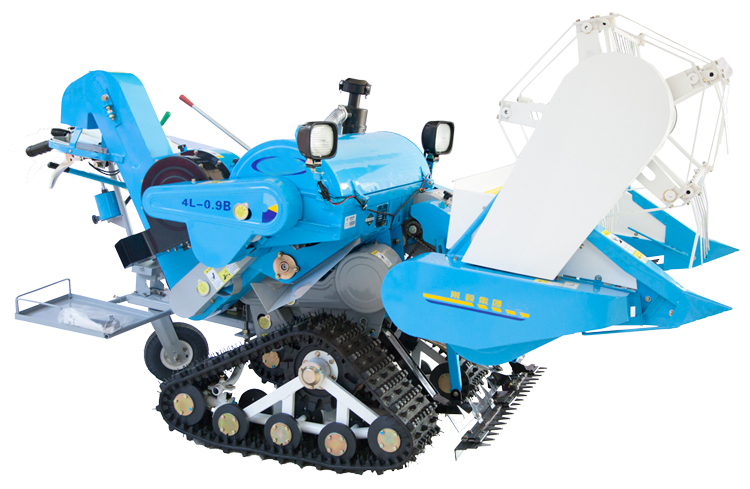

4L-0.9B wheat rice mini combine harvester
The wheat rice mini combine harvester is a kind of multinational combine harvester,which has been granted the national patent, independently developed by the company through learning advanced technology home and abroad as well as combining its own development experience.
The wheat rice mini combine harvester adopts front-wheel-drive, triangle supporting and independent operation, combines harvesting, threshing and cleaning functions in one machine.
The wheat rice mini combine harvester is popular on the market because of its characteristics of mini size, smart operation, easy maintenance, super performance and so on.
The The wheat rice mini combine harvester is mainly used for harvesting rice grain and wheat grain, It is special suit for hills and mountains or areas where general combined harvesters can no enter in, very convenience for the farming.
Technical data of wheat rice mini combine harvester
| General | Model | Unit | 4L-0.9B |
| Stucture Type | / | Full-feeding, Self-propelling | |
| Starting | / | Hand Cranking & Electric starting | |
| Lighting | / | 12v/100w | |
| Cooling | / | Air cooling | |
| Weight | kgs | 450 | |
| Dimensions | mm | 2720*1300*1210 | |
| Engine | Model | / | 188F |
| Diesel engine | / | Single cylinder horizontal evaporative water cooling, direct injection | |
| Rated power | HP | 10 | |
| Rated engine speed | r/min | 3600 | |
| Fuel Consumption | kg/hm2 | ≤20 | |
| Performance | Theoretical working speed | / | 2.56(second gear) |
| Productivity | hm2/h | ≥0.04-0.1 | |
| Crushing rate | / | ≤1.5% | |
| Loss rate | wheat | ≤2% | |
| rice | ≤3.5% | ||
| Rated cutting width | mm | 1000 | |
| Wheels/ | Min. ground clearance | mm | 180 |
| Caterpillar | Caterpillar | mm | Length 800 X width 250 |
| 31 sections and 35 sections caterpillar are available for choice | |||
| Tires | / | 5.00-12 (Optional) |

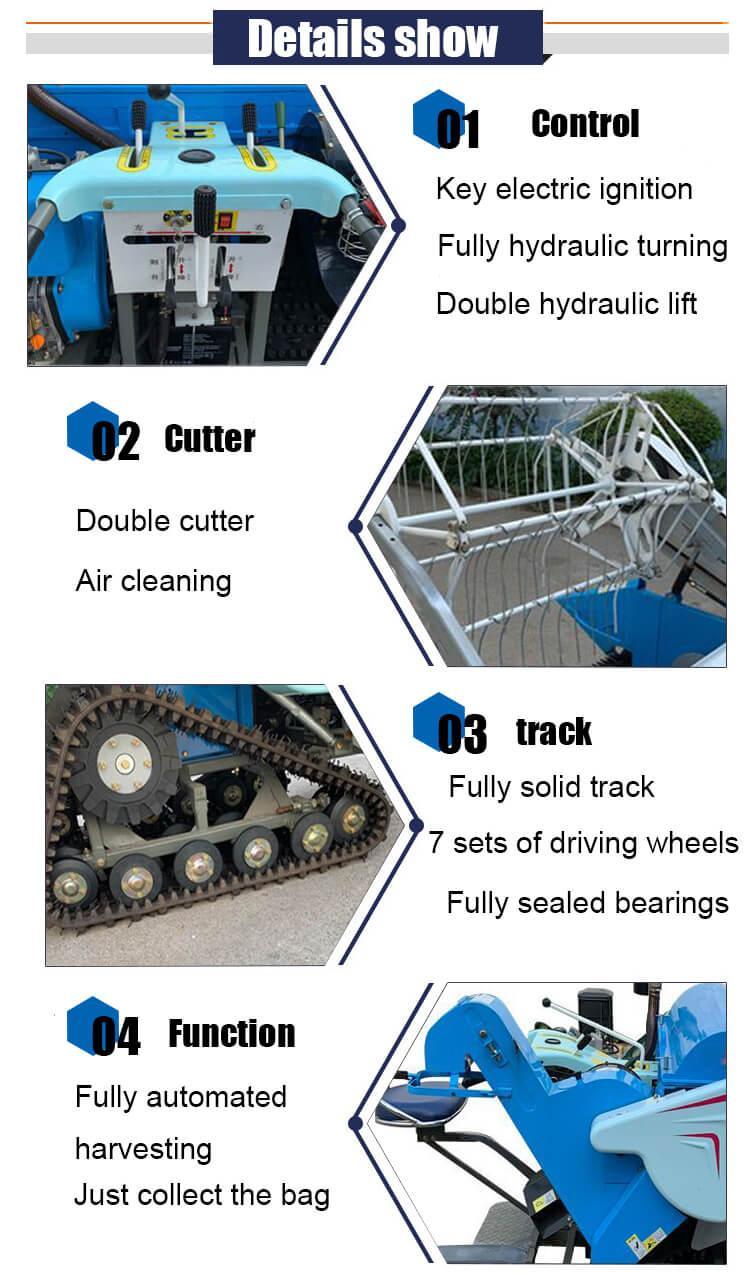

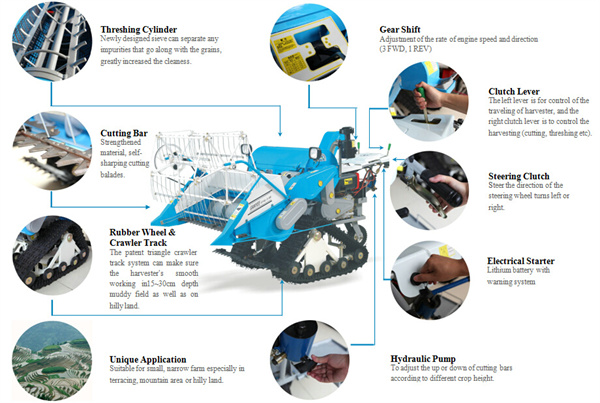

Detail pictures of wheat rice mini combine harvester
Advanced Features
- Advanced Features: It adopts front-wheel-drive, triangle supporting and independent operation, combines harvesting, threshing and cleaning functions in one machine.
It is popular on the market because of its characteristics of mini size, smart operation, easy maintenance, super performance and so on.
Performance Benefits
With 30% higher fuel efficiency compared to conventional models, the MY-2023 Pro reduces operating costs while increasing productivity. The advanced cleaning system ensures grain purity of 98% or higher, meeting international quality standards.
Applications
The MY-2023 Pro Combine Harvester is suitable for a wide range of agricultural applications:
- Large-scale grain farms: Wheat, rice, corn, barley, oats
- Oilseed crops: Soybean, canola, sunflower
- Seed production farms: High-purity seed harvesting
- Contract harvesting services: Professional harvesting operations
- Government agricultural projects: National food security programs
Crop Compatibility
The harvester comes with interchangeable headers for different crops:
- Standard grain header for wheat and barley
- Rice header with track system for wet fields
- Corn header with row-crop adaptation
- Flex header for soybean and canola
Support & Service
We provide comprehensive after-sales support to ensure your investment delivers maximum value:
- Warranty: 1-year comprehensive warranty on all parts
- Training: Free operator training at our facility or your location
- Spare Parts: Guaranteed availability of spare parts with 24-hour emergency service
- Technical Support: 24/7 technical support hotline
- Service Network: Global service network with certified technicians
- Maintenance Plans: Customized maintenance plans available
Delivery & Installation
We handle complete delivery and installation services:
- FOB or CIF shipping options available
- Professional installation and commissioning
- On-site testing and performance verification
- Documentation and compliance assistance
