Industrial paper shredder
Advanced harvesting solution for large-scale agriculture
$45,000 / unit (FOB)
Industry paper shredderBrief introduction of Industry paper shredder:1.The thickened blade is high quality alloy steel by special heat treatment, excellent wear resistance, tool installation can be adjusted, with a blunt after repeated sharpening, repeated use, long service life. 2.The motor is equi
Key Features
Model
Customized
Capacity
100-150kg/h
ISO 9001 Certified
1 Year Warranty
Global Shipping
After-sales Support
Technical Specifications
Model | Z1 |
Capacity | 100-150kgs/h |
Crushing chamber | 200*250mm |
Crushing size | 15mm |
Fixed blade | 2 |
Rotary blade | 6 |
Power | 4kw |
Voltage | 450V 50Hz 3phases |
Weight | 280kgs |
Size | 920*640*1100mm |
Industrial paper shredder
Brief introduction of Industrial paper shredder:
1.The thickened blade is high quality alloy steel by special heat treatment, excellent wear resistance, tool installation can be adjusted, with a blunt after repeated sharpening, repeated use, long service life.
2.The motor is equipped with overload protection device, feeding part and power supply chain protection.
3.Bearings sealed to maintain good when driving.
4.Wide range of application: paper, plastic film, bone, wood, CD, packing materials and so on.
Technical parameters of Industrial paper shredder:
Model | Z1 |
Capacity | 100-150kgs/h |
Crushing chamber | 200*250mm |
Crushing size | 15mm |
Fixed blade | 2 |
Rotary blade | 6 |
Power | 4kw |
Voltage | 450V 50Hz 3phases |
Weight | 280kgs |
Size | 920*640*1100mm |
Technical data of other models industrial paper shredder
Model | Crushing chamber(mm) | Capacity kg/H | Stationary blade(pcs) | Rotary blade(pcs) | Power (kw) | Dimension (cm) | Net weight(kg) |
WF-180 | 185*230 | 80-100 | 2 | 6 | 3 | 78*60*94 | 168 |
WF-230 | 250*200 | 100-150 | 2 | 6 | 4 | 92*64*110 | 280 |
WF-300 | 320*240 | 150-200 | 2 | 9 | 5.5 | 103*71*115 | 432 |
WF-400 | 400*240 | 200-250 | 2 | 12 | 7.5 | 118*82*120 | 500 |
WF-500 | 500*300 | 300-350 | 2 | 15 | 11 | 130*95*151 | 900 |
WF-600 | 600*320 | 350-450 | 4 | 18 | 15 | 150*110*165 | 1100 |
WF-700 | 710*380 | 450-500 | 4 | 24 | 22 | 215*143*220 | 1800 |
WF-800 | 800*480 | 600-800 | 4 | 24 | 22/30 | 197*150*230 | 2000 |

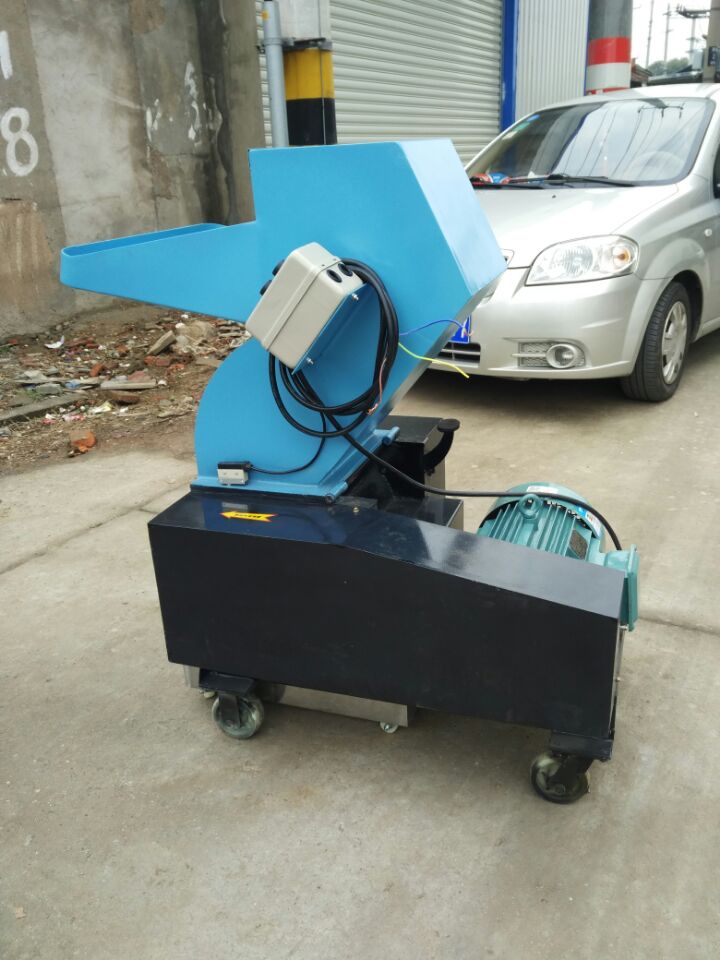

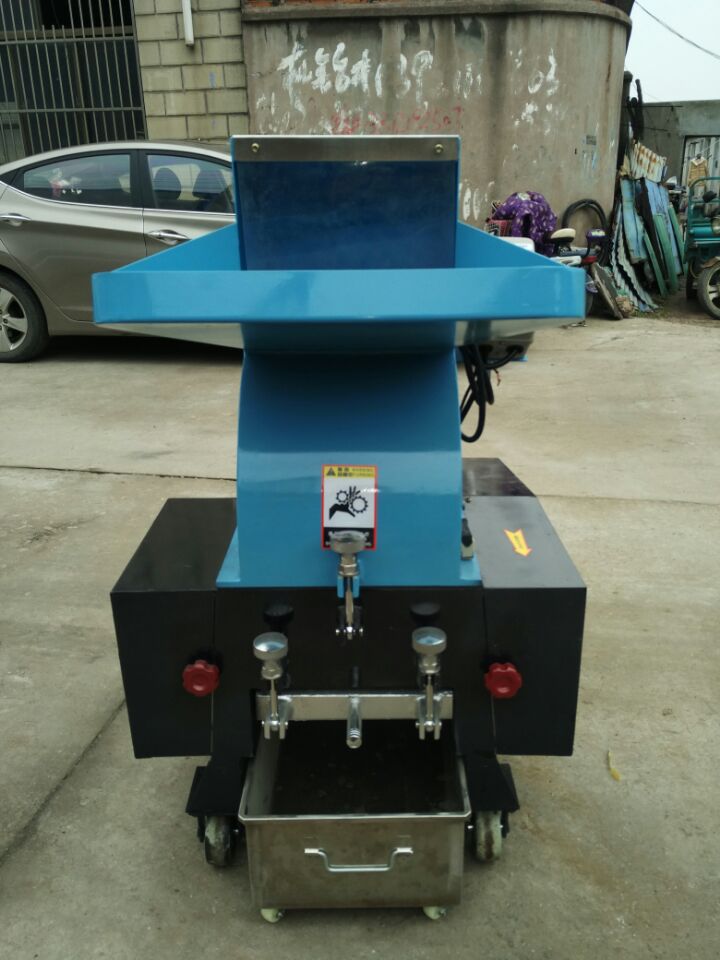

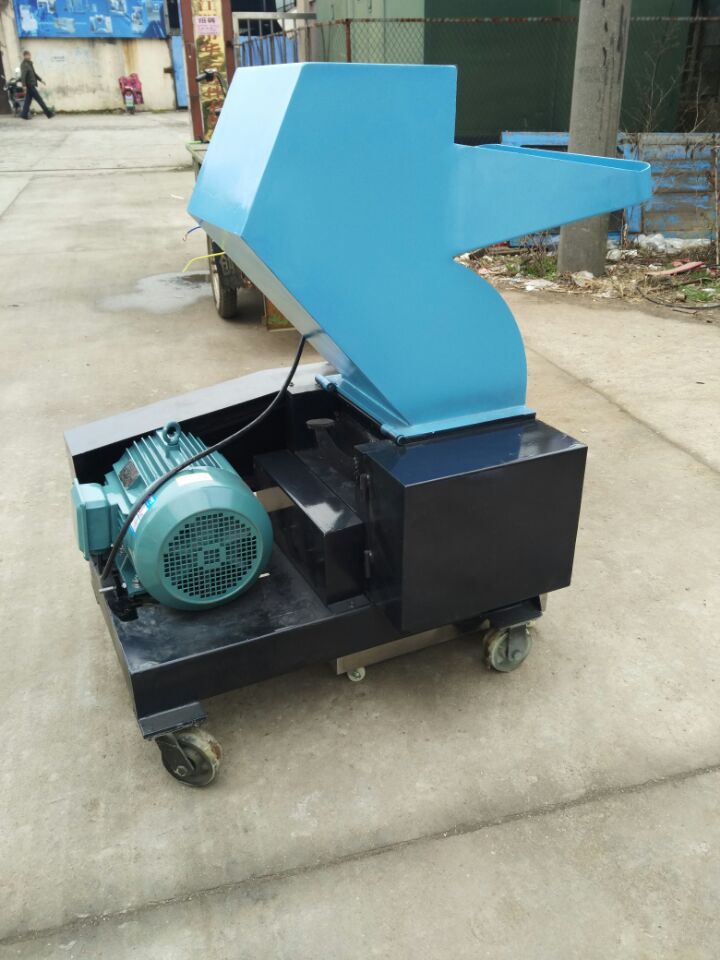

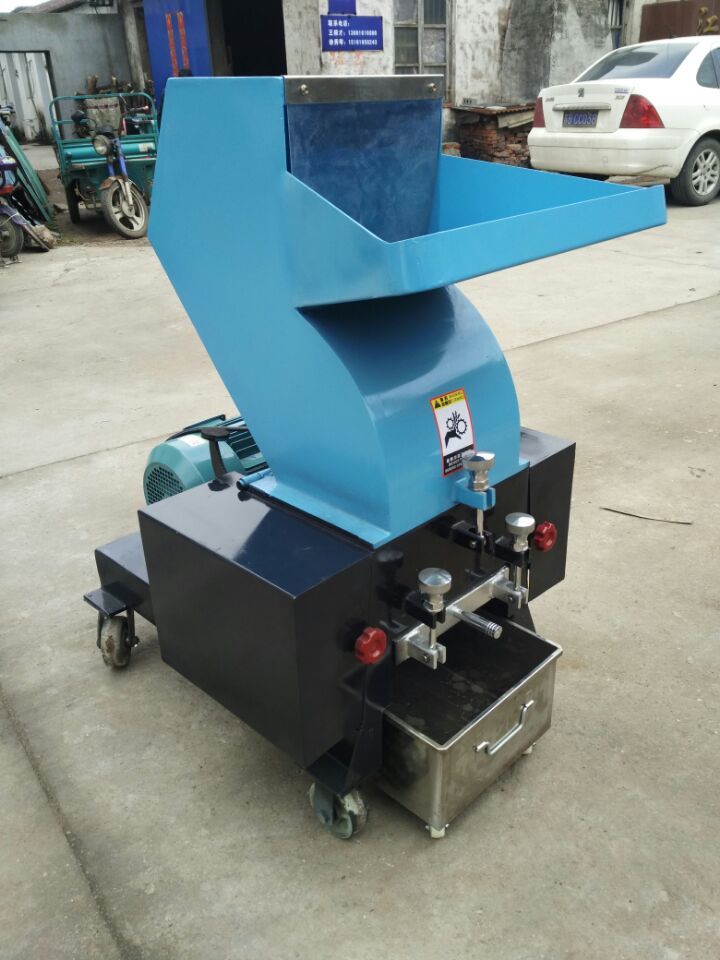

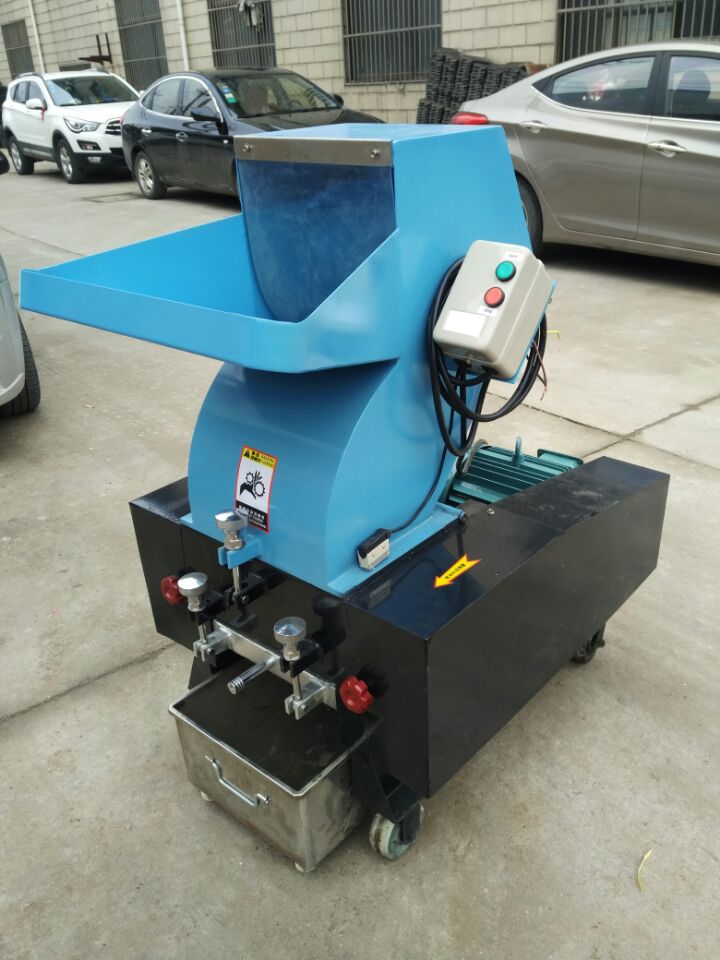

Pictures of Industrial paper shredder

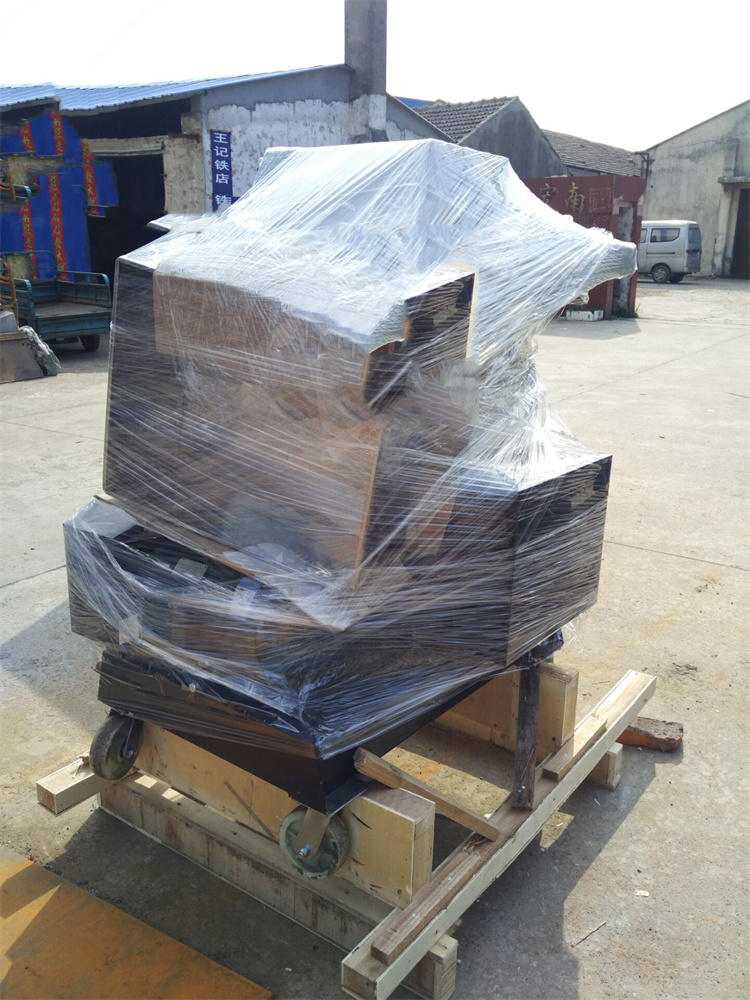

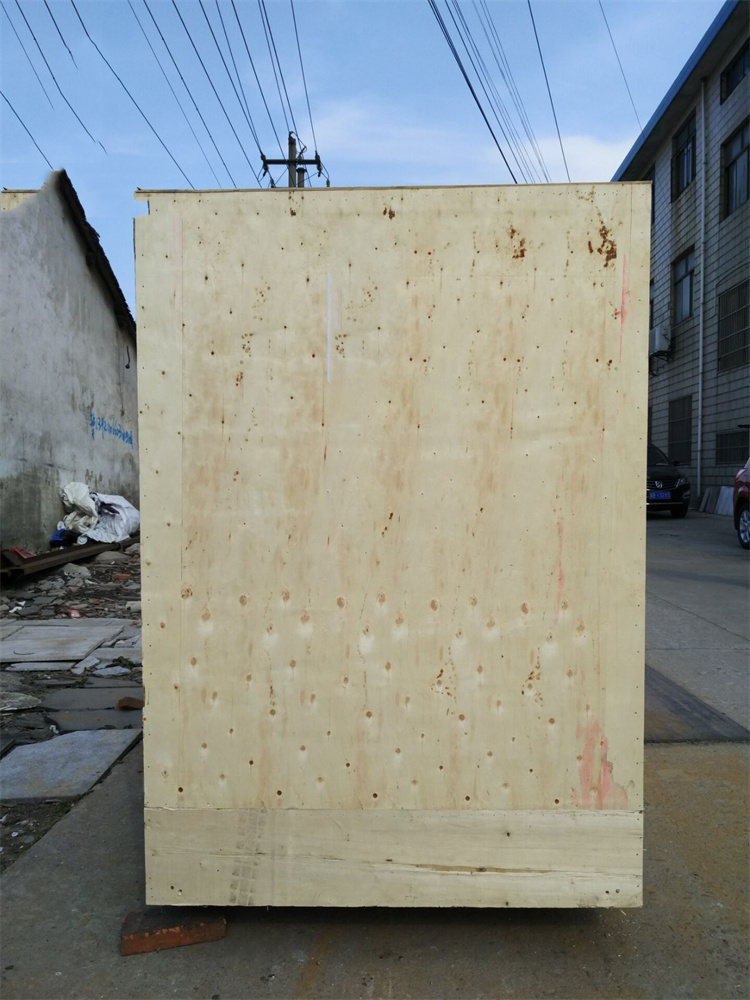

Packing and delivery of Industrial paper shredder

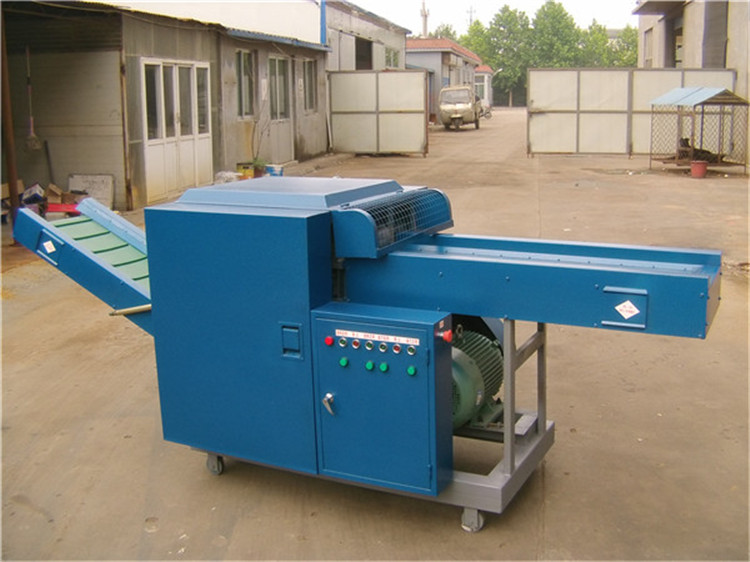

Another type paper shredder machine
| Model | 950 | 900 | 1200 | 1600 |
| Cutting motor | 11kw-4 | 5.5kw-8 | 7.5kw-8 | 15kw-8 |
| Conveyor motor | 1.5kw-4+3kw-2 | 1.5kw-4 | 1.5kw-4 | 2.2kw-4 |
| Voltage | 380v 50hz 3phases | 380v 50hz 3phases | 380v 50hz 3phases | 380v 50hz 3phases |
| Triangular belt | B*2700mm | B*2600mm | B*2800mm | C*3550mm |
| Capacity(kg/h) | 100-300 | 300-500 | 500-800 | 1000-2000 |
| Input conveyor belt (mm) | 1400*350 | 1400*350 | 1400*530mm | 2800*680 |
| Output | Blower | 1400*350 | 2000*530mm | 2800*680 |
| Cutting size(mm) | min 5mm pieces | 3/6/9mm or 25/50/75mm or customized | 25/50/75mm or customized | 40mm wide strips |
| Spinning blade number | 6(adjustable) | 4(adjustable) | 4(adjustable) | 4(adjustable) |
| Fixed blade number | 2(double-edged) | 1(double-edged) | 1(double-edged) | 1(double-edged) |
| Dimension (mm) | 3200x1000x1150 | 3200x1000x1200 | 4400x1200x1250 | 6200x1600x1500 |
| Weight(kgs) | 760 | 700 | 1200 | 1760 |
Advanced Features
- Advanced Features: Wide range of application: paper, plastic film, bone, wood, CD, packing materials and so on.
Performance Benefits
With 30% higher fuel efficiency compared to conventional models, the MY-2023 Pro reduces operating costs while increasing productivity. The advanced cleaning system ensures grain purity of 98% or higher, meeting international quality standards.
Applications
The MY-2023 Pro Combine Harvester is suitable for a wide range of agricultural applications:
- Large-scale grain farms: Wheat, rice, corn, barley, oats
- Oilseed crops: Soybean, canola, sunflower
- Seed production farms: High-purity seed harvesting
- Contract harvesting services: Professional harvesting operations
- Government agricultural projects: National food security programs
Crop Compatibility
The harvester comes with interchangeable headers for different crops:
- Standard grain header for wheat and barley
- Rice header with track system for wet fields
- Corn header with row-crop adaptation
- Flex header for soybean and canola
Support & Service
We provide comprehensive after-sales support to ensure your investment delivers maximum value:
- Warranty: 1-year comprehensive warranty on all parts
- Training: Free operator training at our facility or your location
- Spare Parts: Guaranteed availability of spare parts with 24-hour emergency service
- Technical Support: 24/7 technical support hotline
- Service Network: Global service network with certified technicians
- Maintenance Plans: Customized maintenance plans available
Delivery & Installation
We handle complete delivery and installation services:
- FOB or CIF shipping options available
- Professional installation and commissioning
- On-site testing and performance verification
- Documentation and compliance assistance
