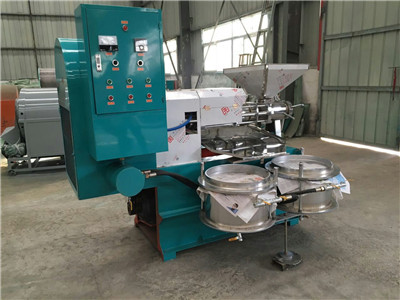

Automatic oil press machine
Advanced harvesting solution for large-scale agriculture
$45,000 / unit (FOB)
Oil press automatic and Multi-function. They can be widely used for many oil seeds pressing, such as peanut, soyabean, sesame, sunflower seeds, copra, olive seeds, almond and so on.
Key Features
Model
Customized
Capacity
1.5ton/day
ISO 9001 Certified
1 Year Warranty
Global Shipping
After-sales Support
Technical Specifications
|
Model |
Capacity (Ton/day) |
Power(Kw) |
Size(mm) |
Weight(Kg) |
|
68A |
1~1.5 |
5.5 |
1600*890*1500 |
370 |
|
80A |
2~3 |
5.5 |
1760*1050*1850 |
600 |
|
95A |
3~5 |
7.5 |
2050*1050*1850 |
940 |
|
100A |
3~5 |
7.5 |
2050*1050*1850 |
940 |
|
120A |
4~6 |
11 |
2220*1050*1850 |
1200 |
|
120CA |
6~8 |
15 |
2340*1050*1850 |
1300 |
|
130A |
9~12 |
18.5 |
2450*1100*1950 |
1500 |
|
160A |
13~18 |
22 |
2600*1200*1950 |
1680 |
Automatic oil press machine
Application of oil press
1.This machine has simple structure and it is easy to operate.
2.It has high oil extraction rate ,and the oil is of fine quality.
3.This machine is well designed so it could save electrcity, and it makes low noise during the process of operation,which is good for the health of the people who works around the machine.
The raw material of oil press
Final product
Main Features of oil press
1. High oil yield, low oil residual in cake. The oil left in cake is less than 6%; The cake thickness can be adjusted when machine stops running;
2. Small-land using: Only 10-20 square meters workshop can make production.
3. Pure oil quality: Machine surface is made of chrome plated stainless steel, in line with food hygiene standards; Besides, with two vacuum oil filters, residual can be removed by simple filtering;
4. Other advantages: High efficiency, energy and labor saving, easy operation, simple maintenience.
Operation Process oil press
1. Prepare raw materials;
2. Adjust the machine;
3. Open the machine, put seeds into the flow box;
4. Seeds flow into the screw bolt, the pressing begins;
5. The crude oil is out of the squeezing bolt, flowing through the board into the vacuum filter for filtration;
6. The oil flow out from the bottom of pipe and the pressing is finished
Big type automatic oil press machine
|
Model |
Capacity (Ton/day) |
Power(Kw) |
Size(mm) |
Weight(Kg) |
|
68A |
1~1.5 |
5.5 |
1600*890*1500 |
370 |
|
80A |
2~3 |
5.5 |
1760*1050*1850 |
600 |
|
95A |
3~5 |
7.5 |
2050*1050*1850 |
940 |
|
100A |
3~5 |
7.5 |
2050*1050*1850 |
940 |
|
120A |
4~6 |
11 |
2220*1050*1850 |
1200 |
|
120CA |
6~8 |
15 |
2340*1050*1850 |
1300 |
|
130A |
9~12 |
18.5 |
2450*1100*1950 |
1500 |
|
160A |
13~18 |
22 |
2600*1200*1950 |
1680 |
Sample picture
Advantage
1. Big type screw oil press machine. Have big capacity.
2. Different models for different demands.
3. With oil filter, can make the final oil clearly.

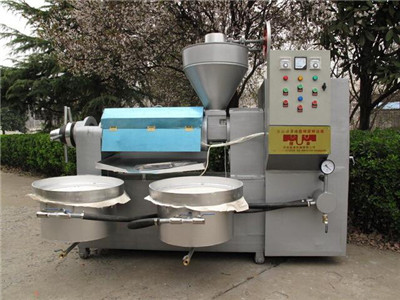

Middle type automatic oil press machine
Specification
| Type | 60H | 70H | 80H | 100H | 120H |
| Screw diameter (mm) | 55 | 65 | 80 | 100 | 120 |
| Screw speed (r/min) | 52 | 48 | 63 | 43 | 36 |
| Power (KW) | 2.2 | 3 | 5.5 | 7.5 | 11 |
| Vacuum power (KW) | 0.55 | 0.75 | 0.55 | 0.75 | 0.75 |
| Heater (KW) | 0.9 | 1.8 | 3 | 3.5 | 4 |
| Capacity (kg/h) | 30-60 | 50-80 | 80-150 | 150-250 | 250-350 |
| Weight (kg) | 220 | 280 | 500 | 850 | 1300 |
| Size (mm) | 1.2 x0.78x1.1 | 1.4x0.86x1.26 | 1.65x1.5x1.7 | 1.7x1.6x1.75 | 1.8x1.7x1.75 |
Sample Pictures
Advantage
1. Beautiful appearance.
2. Full-automatic with oil filter.
3. Can be used in the moving car.
4. Material contact part is stainless steel.

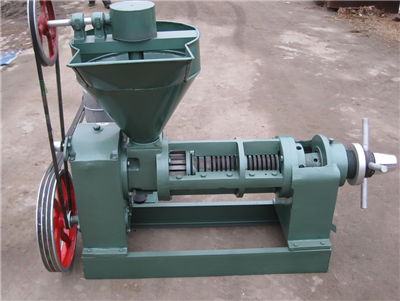

Small type semi-automatic oil press machine
Specification
Sample Pictures
Small type semi-automatic oil press machine
Specification
| Model | Capacity(Ton/day) | Power(Kw) | Size(mm) | Weight(Kg) |
| 68 | 1~1.5 | 5.5 | 900*530*760 | 160 |
| 80 | 2~3 | 5.5 | 1810*560*735 | 370 |
| 95 | 3~5 | 7.5 | 1910*610*765 | 480 |
| 100 | 3~5 | 7.5 | 1910*610*765 | 480 |
| 120 | 4~7 | 11 | 2060*610*760 | 650 |
| 120C | 6~8 | 15 | 2100*700*770 | 650 |
| 130 | 9~12 | 18.5 | 2280*700*770 | 850 |
| 160 | 15~20 | 22 | 2280*700*770 | 1050 |
Sample Pictures
Advantage
1. Small type, Simple structure and easy operation.
2. Both hot and cold press is ok.
3. Suitable for small cooking oil business.
4. Cheap price.

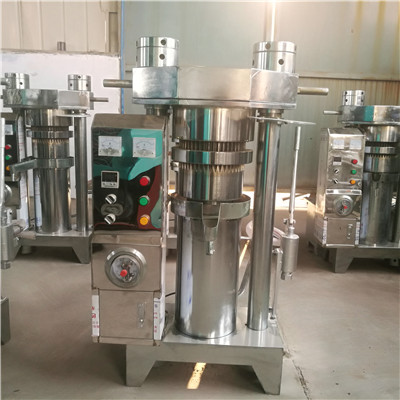

Vertical type hydraulic oil press
Specification
Sample Pictures
Vertical type hydraulic oil press
Specification
| Model | Capacity(input) | Power | Dimension | Weight | Max working pressure |
| 180YP | 4Kg/per time | 1.5kw | 660*280*1100mm | 500kg | 55- 60Mpa |
| 230YP | 8 Kg/per time | 1.5kw | 660*400*1340mm | 810kg | 55- 60Mpa |
| 260YP | 11 Kg/per time | 2.2kw | 780*550*1600mm | 1246kg | 55- 60Mpa |
| 320YP | 15 Kg/per time | 2.5kw | 780*700*1730mm | 1750kg | 55- 60Mpa |
Sample Pictures
Advanced Features
- Advanced Features:
Performance Benefits
With 30% higher fuel efficiency compared to conventional models, the MY-2023 Pro reduces operating costs while increasing productivity. The advanced cleaning system ensures grain purity of 98% or higher, meeting international quality standards.
Applications
The MY-2023 Pro Combine Harvester is suitable for a wide range of agricultural applications:
- Large-scale grain farms: Wheat, rice, corn, barley, oats
- Oilseed crops: Soybean, canola, sunflower
- Seed production farms: High-purity seed harvesting
- Contract harvesting services: Professional harvesting operations
- Government agricultural projects: National food security programs
Crop Compatibility
The harvester comes with interchangeable headers for different crops:
- Standard grain header for wheat and barley
- Rice header with track system for wet fields
- Corn header with row-crop adaptation
- Flex header for soybean and canola
Support & Service
We provide comprehensive after-sales support to ensure your investment delivers maximum value:
- Warranty: 1-year comprehensive warranty on all parts
- Training: Free operator training at our facility or your location
- Spare Parts: Guaranteed availability of spare parts with 24-hour emergency service
- Technical Support: 24/7 technical support hotline
- Service Network: Global service network with certified technicians
- Maintenance Plans: Customized maintenance plans available
Delivery & Installation
We handle complete delivery and installation services:
- FOB or CIF shipping options available
- Professional installation and commissioning
- On-site testing and performance verification
- Documentation and compliance assistance
