Automatic sugar mill / grain mill
Advanced harvesting solution for large-scale agriculture
$45,000 / unit (FOB)
This mini sugar mill has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry, foodstuff industry, grain industry and so on.
Key Features
Model
Customized
Capacity
20-1200kg/h
ISO 9001 Certified
1 Year Warranty
Global Shipping
After-sales Support
Technical Specifications
Model | Production Capacity | Spindle speed | Feeding Size | Crushing Fineness | Crushing Motor | Weight | Overall dimension |
20B | 20-150kg/h | 4500r/min | 6mm | 40-120 | 4KW | 180KG | 55*600*1250 |
30B | 30-300kg/h | 3800r/min | 10mm | 40-120 | 7.5KW | 230KG | 600*700*1450 |
40B | 40-800kg/h | 3400r/min | 12mm | 40-120 | 11KW | 360KG | 800*900*1050 |
60B | 80-1200kg/h | 2800r/min | 15mm | 40-120 | 18.5KW | 450KG | 900*900*1880 |

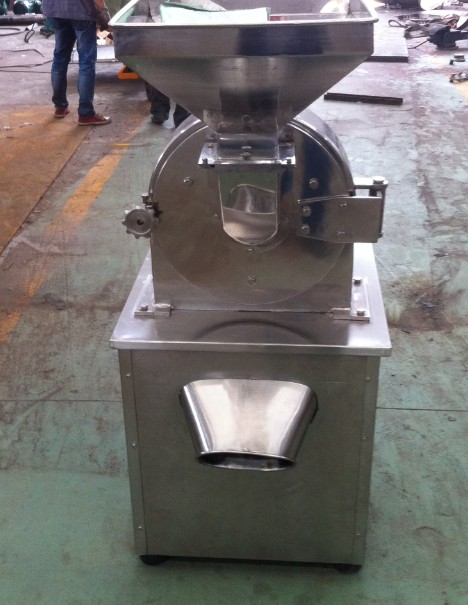

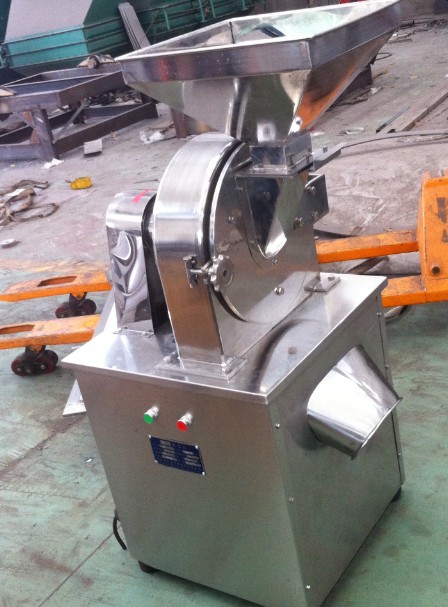

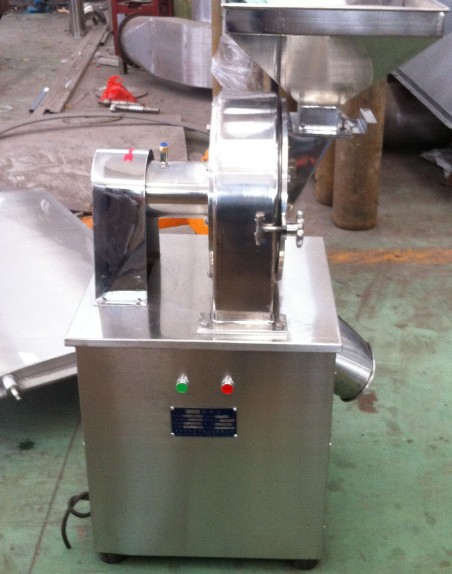

Automatic sugar mill
Introduction of sugar mill:

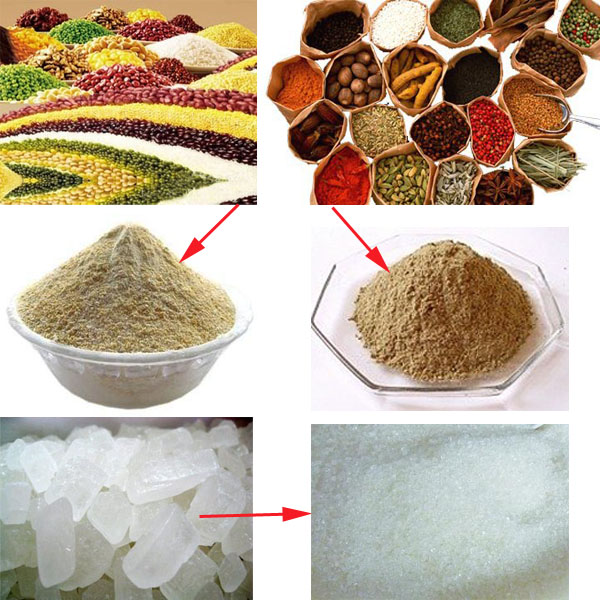

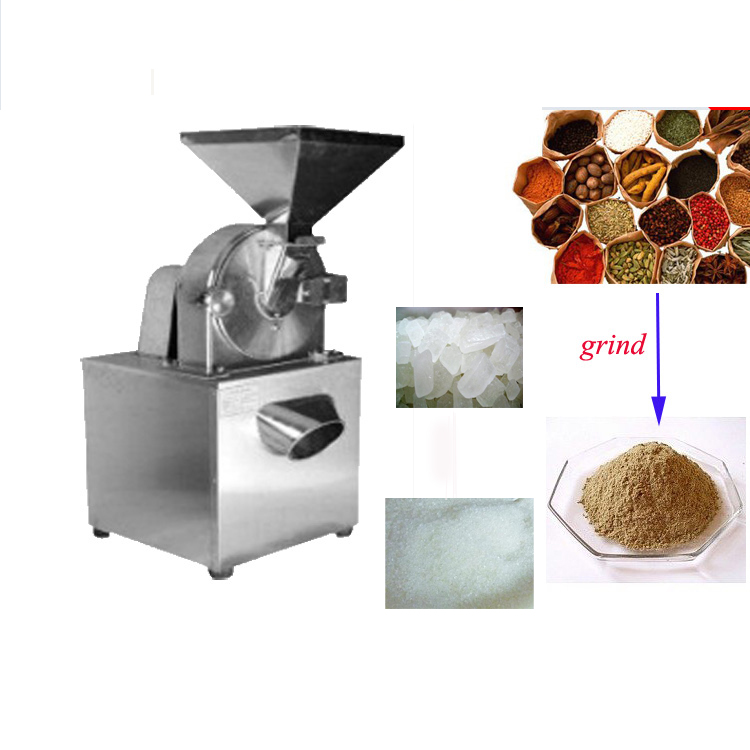

This sugar mill can be used for milling sugar,grain,herb such as rice, soybean, peanut, sesame, corn, wheat,
etc into pulp powder and bean shell and so on. You can choose the mesh you need.
The sugar mill use centrifugal grinding principle, advanced technology, wide application, high degree of electricity production,
small volume, light weight, low noise, simple operation, easy maintenance, and processing of pulp conform to the
requirements of the quality of food sanitation, Built-in motor , do not need to make the foundation installation, can
use after connecting the power, is the ideal mechinery.
Futures of sugar mill:

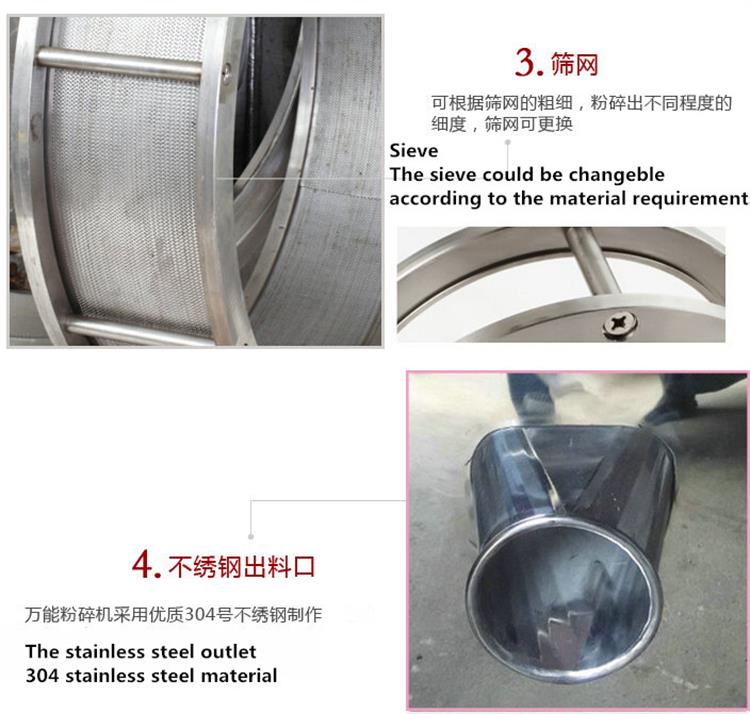

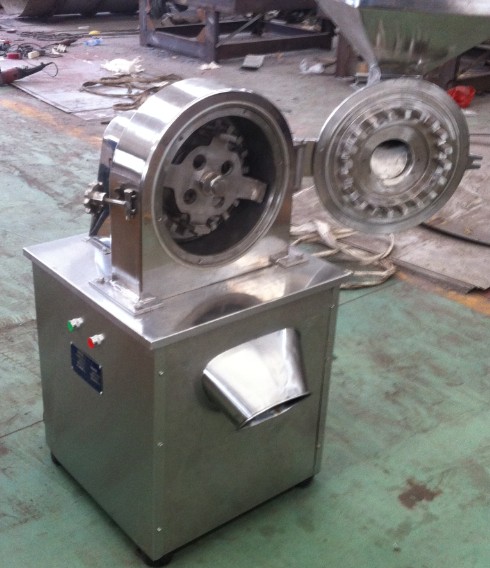

The sugar mill is made of chassis, door, turbine, shaft, screen, pulleys and motors and other component parts.
It adopts the stainless steel material so it has the features of wear-resistance and corrosion resistance.
The sugar mill takes advantage of high speed relative movement between movable and fixed fluted discs to grind materials.
The sugar mill of our company has compact structure and the crushed materials can meet national standards.
Application of sugar mill :
1.The multifunctional stainless steel sugar mill mainly used for the pharmaceutical, chemical,
food (example: ginger, chili, pepper, oil and wheat, soybean, sugar,salt, star anise, cinnamon, cocoa bean),
and other materials in the crushing process low hardness,
2.fineness adjusted between 10-120mesh,
3.especially for oily, viscous, heat-sensitive, fibrous materials such as low hardness crushing process.
Technical data of sugar mill
Model | 20B | 30B | 40B | 60B | 80B |
Voltage | 220/380 | 220/380 | 380 | 380 | 380 |
Power | 4/5.5kw | 5.5/7.5kw | 7.5/15kw | 22/30kw | 45/55kw |
Rotation speed | 3800r/min | 3500r/min | 3300r/min | 3000r/min | 2500r/min |
Fineness | 10-120mesh | 10-120mesh | 10-120mesh | 10-120mesh | 10-120mesh |
Capacity | 10-100kg/h | 30-200kg/h | 50-300kg/h | 100-500kg/h | 200-1000kg/h |
Weight | 200kg | 280kg | 380kg | 650kg | 1300kg |
Dimension | 500*500 *1100mm | 600*600 *1300mm | 700*700 *1400mm | 900*900 *1800mm | 1200*900 *2000mm |
Advanced Features
- Advanced Features:
Performance Benefits
With 30% higher fuel efficiency compared to conventional models, the MY-2023 Pro reduces operating costs while increasing productivity. The advanced cleaning system ensures grain purity of 98% or higher, meeting international quality standards.
Applications
The MY-2023 Pro Combine Harvester is suitable for a wide range of agricultural applications:
- Large-scale grain farms: Wheat, rice, corn, barley, oats
- Oilseed crops: Soybean, canola, sunflower
- Seed production farms: High-purity seed harvesting
- Contract harvesting services: Professional harvesting operations
- Government agricultural projects: National food security programs
Crop Compatibility
The harvester comes with interchangeable headers for different crops:
- Standard grain header for wheat and barley
- Rice header with track system for wet fields
- Corn header with row-crop adaptation
- Flex header for soybean and canola
Support & Service
We provide comprehensive after-sales support to ensure your investment delivers maximum value:
- Warranty: 1-year comprehensive warranty on all parts
- Training: Free operator training at our facility or your location
- Spare Parts: Guaranteed availability of spare parts with 24-hour emergency service
- Technical Support: 24/7 technical support hotline
- Service Network: Global service network with certified technicians
- Maintenance Plans: Customized maintenance plans available
Delivery & Installation
We handle complete delivery and installation services:
- FOB or CIF shipping options available
- Professional installation and commissioning
- On-site testing and performance verification
- Documentation and compliance assistance
